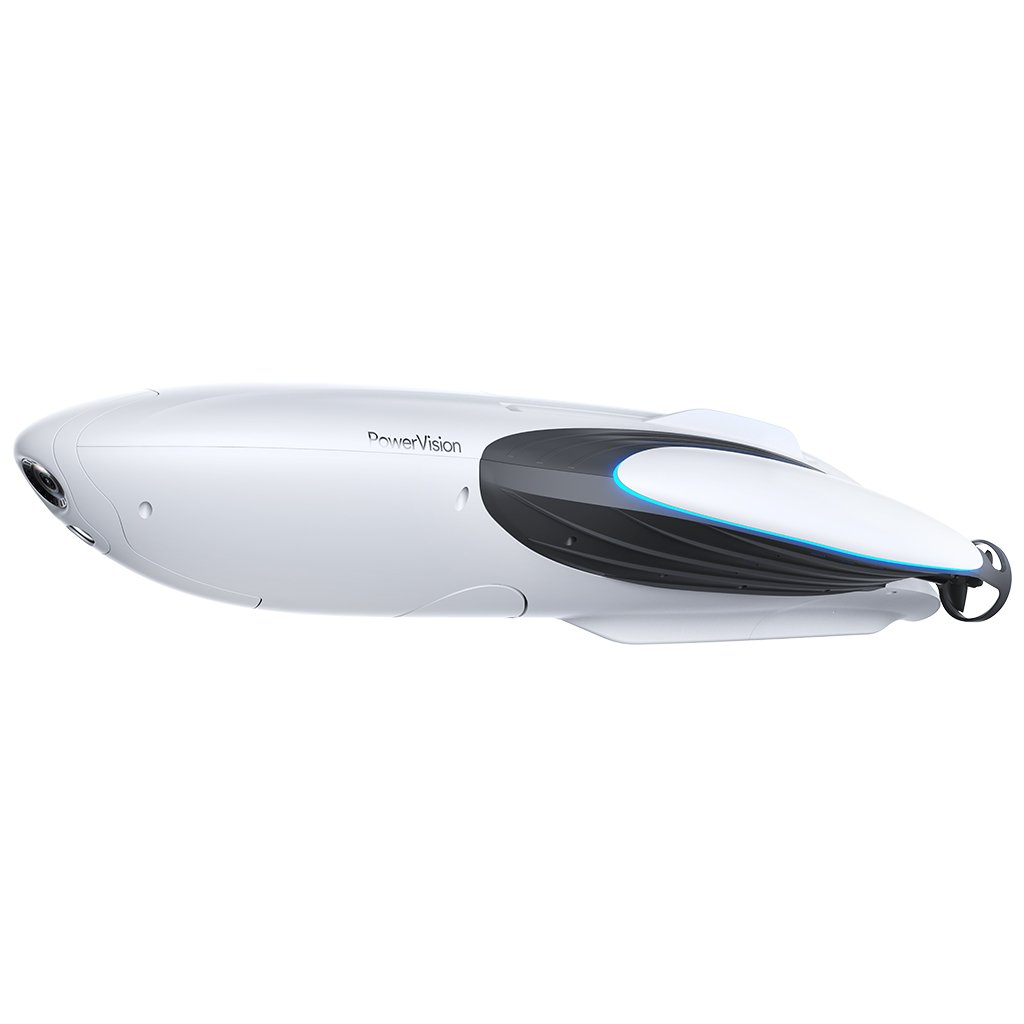

PowerVision PowerDolphin Wizard

Operating FrequencyFCC/IC: 2412 – 2462 MHz, 5745 – 5825 MHz
CE: 2412 – 2472 MHz, 5660 – 5700 MHz
SRRC: 2412 – 2472 MHz, 5725 – 5825 MHz
MIC: 2412 – 2462 MHz, 5500 – 5700 MHz

Transmitter Power (EIRP)2.4G:
FCC/IC: ≤ 30 dBm
CE/SRRC/MIC: ≤ 20 dBm
5G:
FCC/IC/CE/SRRC/MIC: ≤ 12 dBm

Max Transmission Distance
(Unobstructed, free of interference)

FCC/IC:
Remote is 11 ft above the water: 0.5 mi
Remote is 5 ft above the water: 0.3 mi
CE/SRRC/MIC：
Remote is 11 ft above the water: 0.3 mi
Remote is 5 ft above the water: 0.2 mi
Tips: The higher the remote is above the water, the farther the transmission distance can be.

Operating Temperature Range32 F – 104 F

Battery Capacity3500 mAh

Operating Time~2 hrs

Charging Time~2 hrs

Supported Mobile Device SizeMax thickness: 0.32 in
Max width: 3.3 in

Supported USB Port TypeType-A

Watt Hours64.64 Wh

Nominal Capacity5800 mAh

Voltage10.8V

Max Charging Voltage12.6V

Battery TypeLi-ion

Weight~1 lb

Charging Temperature Range32 F – 104 F

Charging Time~2.5 hrs

Max Charging Power63 W

Mobile App NameVision+ 2

Live View Quality1080p@30fps, 720p@30fps

Latency＜ 300 ms (depending on environmental conditions and mobile devices)

Required Operating SystemiOS 8.0 or later, Android 5.0 or later
